Accurate Liquid or
Condensate Metering |
Infinite Rangeability Guarantees + 1%
Accuracy
With Flows As Low As One Drop At A Time. |
 |
- Whether it's one drop or the full
rated flow, volumetric metering guarantees accurate readings. "Volumetric" means
we measure liquid volume (corrected for temperature), not rate of flow.
Since the volume of each drum is a known factor, counting
revolutions is virtually 100% accurate. And with a little maintenance the meter will last
a lifetime; fifty-year-old volumetric meters are commonplace and our new 304SS meters
should last even longer.
| All meters are flow
tested twice and come with certified test certificate. |
|
| The drum consists of six scroll-shaped sections.
Liquid enters the drum through an axially mounted inlet spout at the center of the meter. |
As each section fills, excess liquid spills into
the next section. This shifts the center of gravity and the drum rotates. |
How To Order Sizes A-G
|
| Meter Type: Condensate _____
Liquid _____ Application:
Vacuum _____ Gravity _____
Size _____
PPH
_____ GPH _____ |
- Meters come with a PulsePro™ Totalizer consisting of a
remote LCD (lithium battery powered) pre-wired with 20 feet of four-conductor cable to a
magnetic sensor switch mounted on the meter. Up to three additional sensors may be added
for computer interfacing or enabling other equipment. Sensor rating: .5 amps, 200VAC,
square pulse signal.
|
|
Remote, pre-wired LCD (20 ft. four conductor cable) |

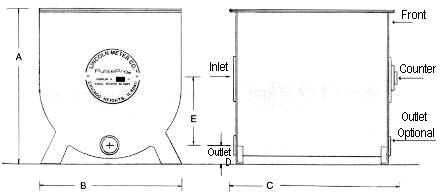

| SIZE |
CAPACITY-PPH/GPH |
INLET |
OUTLET |
A |
B |
C |
D |
E |
NET WT. |
SHIPPING WT |
| A |
250/30 |
1/2" |
1 1/4" |
11 1/2" |
12 1/2" |
8 3/4" |
1 3/8" |
5" |
30 |
35 |
| B |
500/60 |
1/2" |
1 1/2" |
11 3/4" |
12 1/2" |
10 1/4" |
1 3/8" |
5" |
35 |
40 |
| C |
750/90 |
1/2" |
1 1/2" |
16 3/4" |
16" |
9 1/4" |
1 5/8" |
7 1/4" |
50 |
55 |
| D |
1500/180 |
3/4" |
2" |
17 1/4" |
16" |
12" |
1
5/8" |
7 1/4" |
60 |
65 |
| E |
3000/360 |
3/4" |
2 1/2" |
23 1/4" |
22" |
13" |
2 1/8" |
10 5/8" |
125 |
175 |
| F |
6500/780 |
1" |
3" |
23" |
23" |
18 1/4" |
2 1/2" |
10" |
130 |
180 |
| G |
12000/1440 |
1 1/4" |
3" |
23" |
23" |
25 1/4" |
2 5/8" |
10" |
190 |
240 |
PPH=
pounds per hour GPH= gallons per hour
METERS ARE ALL STAINLESS STEEL, EXCEPT FOR PULSE-PRO COUNTERS, GASKETS
AND ROLLER BUSHINGS.
|
